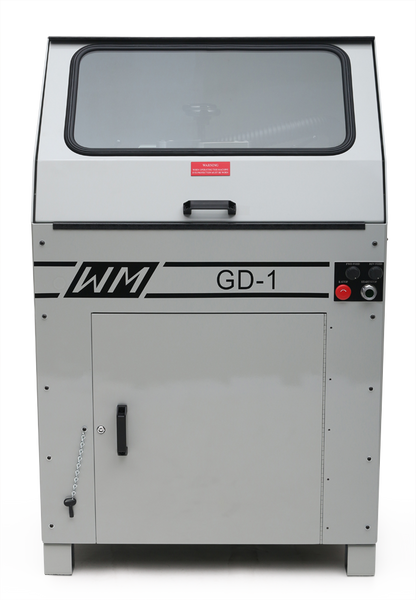

GD-1 Guide Dresser

Product Description

The GD-1 Band Guide Dresser features Swing Away Clamp Arms for easy guide removal from the table top. Vacuum Dust Removal to keep the work environment clean. Multi-adjustable Guide Stops and Table Stops to set the GD-1 to your most common guide sizes and angles. Linear Truck and Rail System for precise movement of the cutter head. Adjustable feed rate in both directions for high-speed cutting.

GD-1 Brochure

GD-1 Manual

FEATURES:

  • 3/4 hp, 3450 rpm Industrial Spindle Motor
  • Variable Speed Industrial Gear Motor
  • Adjustable Feed Rate Forward And Return
  • Max Feed Rate Of 41 Inches Per Minute
  • Movable Clamp Arms
  • Shop Vac for Dust Removal
  • 90° to 40° Of Angle Adjustment
  • Linear Truck and Rails System
  • Adjustable Guide Stops
  • Adjustable Table Stops

SPECIFICATIONS:

  • Guides: 2″ H x 13″ L max
  • Voltage std.: 115V, 1-phase, 60Hz
  • Optimal Voltage: none
  • Ship Weight: 600 lbs.
  • Crate Size: 50″ L x 40″ W x 69″ H
  • Air: none
