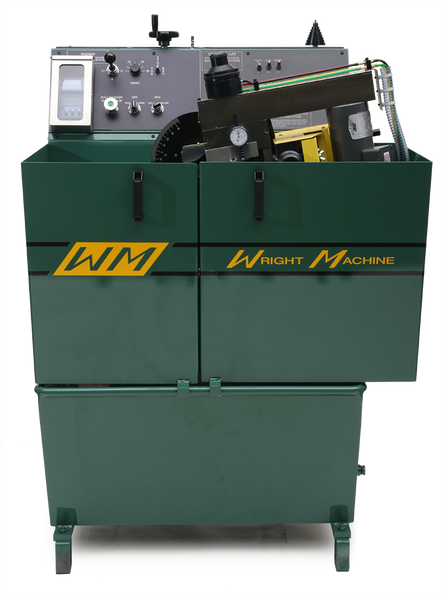

W-150 Heavy Duty

Product Description

The Wright W-150 HDB sharpens the top, face, or V-notch of circular saws. Heavy-duty construction increases accuracy, productivity, and machine life.

Improved saw sharpening accuracy is accomplished through lift-off grind on the return stroke, precision multi-bearing spindle, heavy duty slide system, 1 horsepower drive motor, and a massive construction design.

Operation is a snap due to the simple, easy to operate controls. Efficient operation becomes second nature.

The load monitor adjusts the feed rate making quick work of tooth replacement and reduces the chance of grinding wheel damage. The powered saw lift automatically places the saw at the correct position, reducing setup time.

Field proven performance, first introduced in 1985 and refined with continual improvements, the W-150 HDB has become the industry standard top or face sharpener.


Features:

  • Filtered full flood coolant
  • Tooth counter with auto-stop
  • Low-voltage work light
  • 1 hp spindle motor
  • Dual-pressure saw clamp
  • Precision spindle
  • Precision bevel adjustment
  • Load monitor
  • Power hook adjustment
  • Power saw lift
  • Saw diameter auto-set
  • Micrometer plate adjustment

Specifications:

  • Circle saw size: 4" to 30"
    • Optional 54" capability available
  • Power consumption: 1.5 kW
  • Voltage standard: 230V, 3-phase, 50Hz/60Hz
  • Air: 2 CFM @ 80 psi
  • Ship weight: 1,425 lbs
  • Crate size: 49" x 44" x 62"
  • Max. pitch: 4-1/4"
