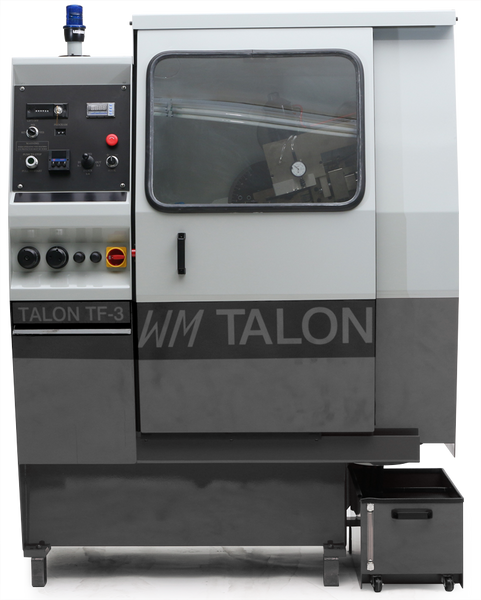

TF-3 Top and Face Sharpener
Designed specifically to be the best top circular saw sharpener available. Field-proven under years of 24-hours-a-day service to consistently deliver superior performance. The TF-3 Top or Face delivers exceptional finish and accuracy even at high speeds. The TF-3 has the ability to grind many tooth geometries in one set up.
The TF-3 Top or Face features massive construction with a weight of over 2,000 lbs. but uses only 15 square feet of floor space.
Central Lubrication System reduces maintenance requirements and increases machine life.
The precision 2 horsepower grinding head moves on a robust double track multi-truck linear slide system powered by hydraulic controlled feed, giving high accuracy and productivity.
Special high-speed programs can give "off carbide" grinding time, as low as one second. This increases productivity without sacrificing grind accuracy or wheel life.
The enclosed grind cabinet improves the work environment by containing noise and coolant.
- 100 Tooth Programs
- 10 G.P.M. Filtered Flood Coolant
- Totally Enclosed
- Low Voltage Work Lights
- Precision 2 hp Spindle Motor
- Dual Pressure Saw Clamp
- Precision Multi Bearing Spindles
- Auto Central Lubrication System
- Grinding Load Monitor
- External Pitch Adjustment
- Lift Off Grind
- External Plate Thickness Adjustment
- Circle Saw Size: 4" to 34"
- Power Consumption: 1.7 kW
- Voltage Standard: 230V, 3-Phase, 50Hz/60Hz
- Voltage Optional: 460V, 3-Phase, 50Hz/60Hz
- Air: 3 CFM @ 80 psi
- Ship Weight: 2,200 Lbs.
- Crate Size: 48" x 72" x 82"
- Max. Pitch: 5.75"
