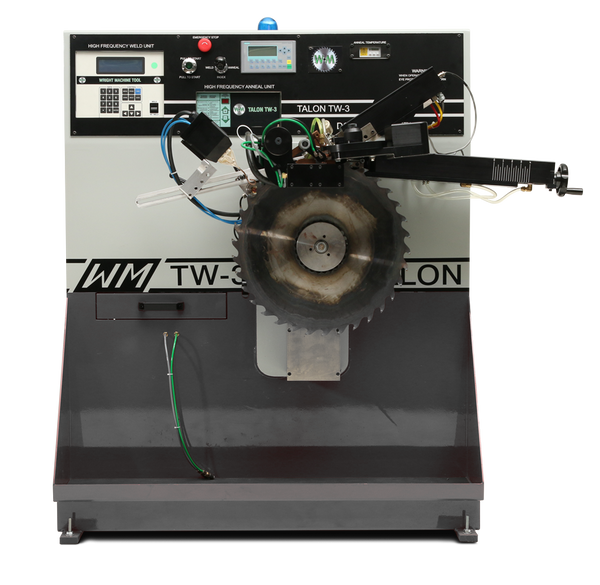

TW-3 Automatic DC Tip Welder / Induction Annealer

Product Description

An advanced computer “PLC” handles machine control. The DC weld head reduces sensitivity to incoming voltage fluctuations and allows welding on plate thickness down to 0.030" with tips down to 0.050" wide. The Annealing unit is a compact device that is manufactured using solid-state technology; each has an embedded microprocessor that guarantees stable power output as well as optimum operating frequency. The microprocessor also performs monitoring and diagnostic functions to inform the user of device status.

The Talon TW-3 tipper, makes use of innovative preformed Stellite® tipping technology, making the tipping process easier and more affordable than ever. Our unique Weld System turns slag into an advantage by keeping it in the weld zone. This not only strengthens the weld but allows for full annealing of the slag material. In addition to being the fastest tipping and annealing machine on the market, the TW-3 cuts grinding times significantly. The triangular design of the tip has the top and face angles already in place. With the TW-3's ability to accurately place the tips centered on the saw, side-grinding time is also reduced. All of this adds up to added Stellite® tip life, lower abrasive wheel use, and saving time!

Features:

  • Low Stellite® Cost
  • Preformed Tips
  • Power Weld Forging
  • Tip Alignment System
  • Anneal With Learn Mode
  • Swing Away Clamp
  • Water Cooled System
  • Compact Size
  • Operator Interface
  • Advanced PLC Control

Specifications:

  • Bands: 4″ to 16″
  • Circle Saw Size: 6″ to 36″
  • Power Consumption: 2.5 kW
  • Air: 2 CFM @ 80 psi
  • Voltage std.: 230V, 1-Phase, 50Hz/60Hz
  • Ship Weight: 1,250 lbs.
  • Crate Size: 67″ x 48″ x 64″
