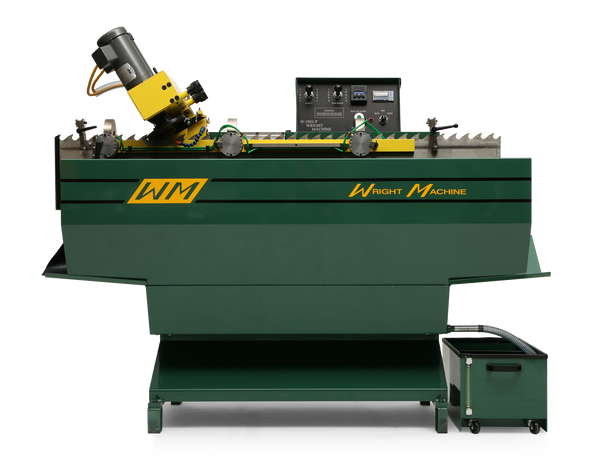

W-1902-P Quad

Product Description

The W-1902-P Periphery Grind Dual Side quickly and accurately sharpens the sides of swaged or Stellite® tipped band saws. The periphery grind option gives the operator an efficient and highly accurate finish grind increasing saw performance. The "for band saws only" design allows features that improve accuracy and speed.

W-1902-P Brochure

W-1902-P Manual

Features:

  • Two 1 Horsepower Spindle Motors
  • Filtered Flood Coolant
  • Precision Spindles
  • Zero Backlash System
  • Grinding Load Monitor
  • Full-Length Clamps
  • Power Saw Lift
  • Joystick Control
  • Finger Supported Grind

Specifications:

  • Band Width: 5" to 16"
  • Power Consumption: 4.5 kW
  • Air: 3 CFM @ 80 psi
  • Voltage Std.: 460V, 3-Phase, 50Hz/60Hz
  • Ship Weight: 2,300 lbs.
  • Crate Size: 83" x 48" x 60"
