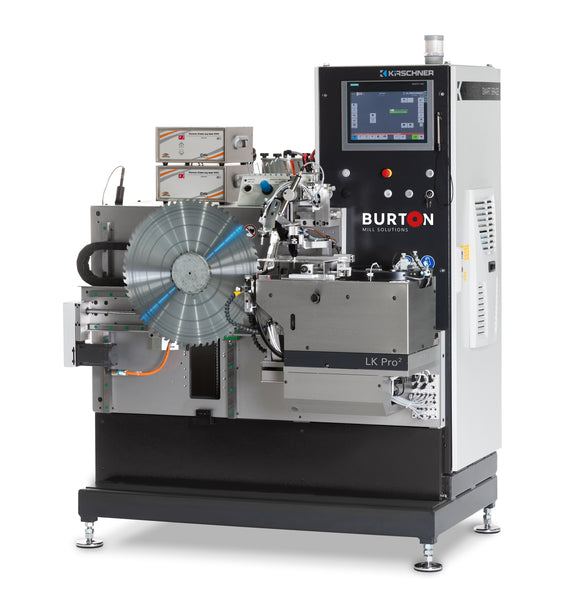

LK Pro2 Kirschner Tipper
Product Description
Designed specifically for the filing room, the LK Pro2 Kirschner Tipper is a fully automatic linear system for brazing pre-tinned carbide and pre-tinned Stellite tips.
Features
- Automatic sash positioning with touchscreen interface
- Patented no vibration sorting bowl for a 15% increase of bonding strength
- Smart Braze RF/ID and data communication i4.0 (available as option upon request)
Benefits
- Reduces grinding times, increases saw accuracy
- Requires less maintenance while providing easiest operation
- Advanced safety and servo technology
- Up to 13 tips / minute
Specifications
| Saw diameter | Ø 3.9" to 33.5" |
| Hook angle |
-10° to +32° |
| Tip width |
0.050" to 0.350" |
| Tip length | 0.130" to 0.510" |
| Power generator | HF generator 5.6 kW |
| Electrics |
3 ph 400/230 V - 50 Hz transformer |
| Control voltage | 760 Hz |
| Total power | Approx. 7.2 kVA |
| Pneumatics | 90 psi / ≥ 6 bar |
| Machine Dimensions | Approx. 63" W x 45" D x 75" H |
| Weight | Approx. 2,183 lbs |
