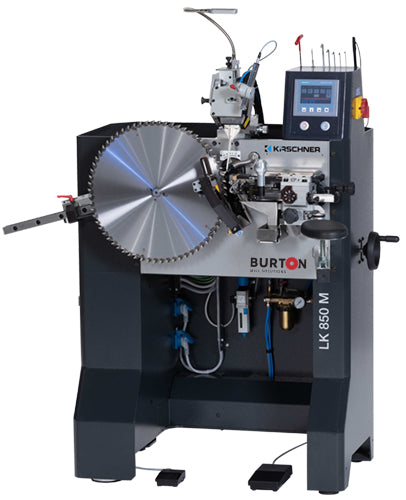

LK 850 M Kirschner Tipper
Product Description
The LK 850 M Kirschner Tipper brazes pre-tinned carbide tips in a precise, centrical, and efficient way. It is ideally suited for repair work and small saw production batches.
- The pre-tinned carbide tip is placed by hand in the feed rail.
- The tip is automatically positioned and picked up by the high-precision and solid gripper, positioned perfectly center into the blade, then brazed with the perfect temperature.
- Easily change the processing modes in the control panel (brazing, annealing, tip removal).
- Perfect shear strength combined with low heat absorbed by the blade.
- Shortest set-up time with ergonomic arm support and PLC control.
- New feature for PCD face angle brazing as option.
- The machine is designed and equipped according to CE standards.
Specifications
| Saw diameter | Ø 3.9" to 33.5" (option up to 43.3") |
| Hook angle |
-15° to +35° |
| Axis angle | -20° to +20° (optional) |
| Tip width |
0.079" to 0.354" |
| Tip length | 0.138" to 0.512" |
| HF power | CEIA 3.5 kW (optional 5.6 kW) |
| Total load | 180 - 260 V/N/PE; 50/60 Hz 4 kVA/16A |
| Pneumatics | 6 bar |
| Machine Dimensions | Approx. 62" W x 35" D x 62" H |
| Weight | Approx. 794 lbs |
