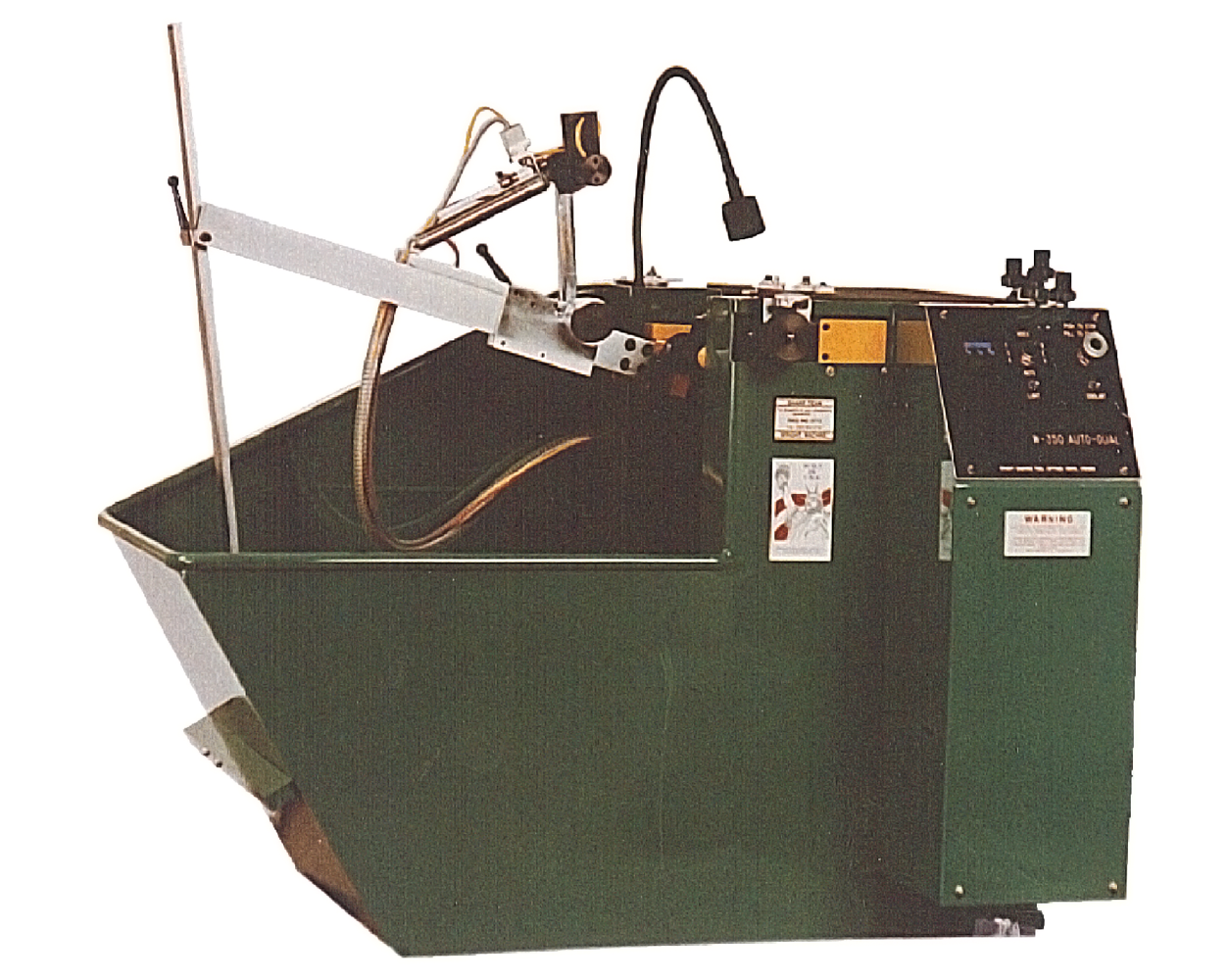

W-350 HDS Automatic Dual Side

Product Description

The W-350 Heavy Duty Super Automatic Dual Side Sharpener may increase saw performance by improving tooth accuracy. Both sides of the tooth are sharpened in a single pass. Automatic operation reduces labor to a minimum.

The W-350 HDS is our most accurate and productive W-350 side sharpener. The W-350 HDS features heavy-duty spindles, drives, motors, and "Lift-Off/Step-In Grind" which dramatically increases accuracy, speed, and machine life. Automatic saw diameter adjustment reduces setup time. The W-350 HDS makes sharpening of re-tipped saws efficient and cost-effective.

W-350 HDS Brochure

W-350 HDS Manual


  • Filtered Full Flood Coolant
  • Precision Spindle
  • Low Voltage Work Light
  • Dial Indicated Side Adjustments
  • Two 3/4 horsepower, 3-phase Spindle Motors
  • Multi V Belt Drive
  • Improved Wheel Guards
  • Manual or Auto Operation
  • Greater Accuracy
  • Lift Off/step in Grind
  • Auto Load Saw Locator
  • Heavy Construction


  • Circle Saw Size: 6" to 36"
  • Power Consumption: 2 kW
  • Air: 3 CFM@ 80 psi
  • Voltage std.: 230V, 3-Phase, 50Hz/60Hz
  • Ship Weight: 1,375 lbs.
  • Crate Size: 49" x 44" x 62"
