W-150 Standard Automatic Top or Face

Product Description

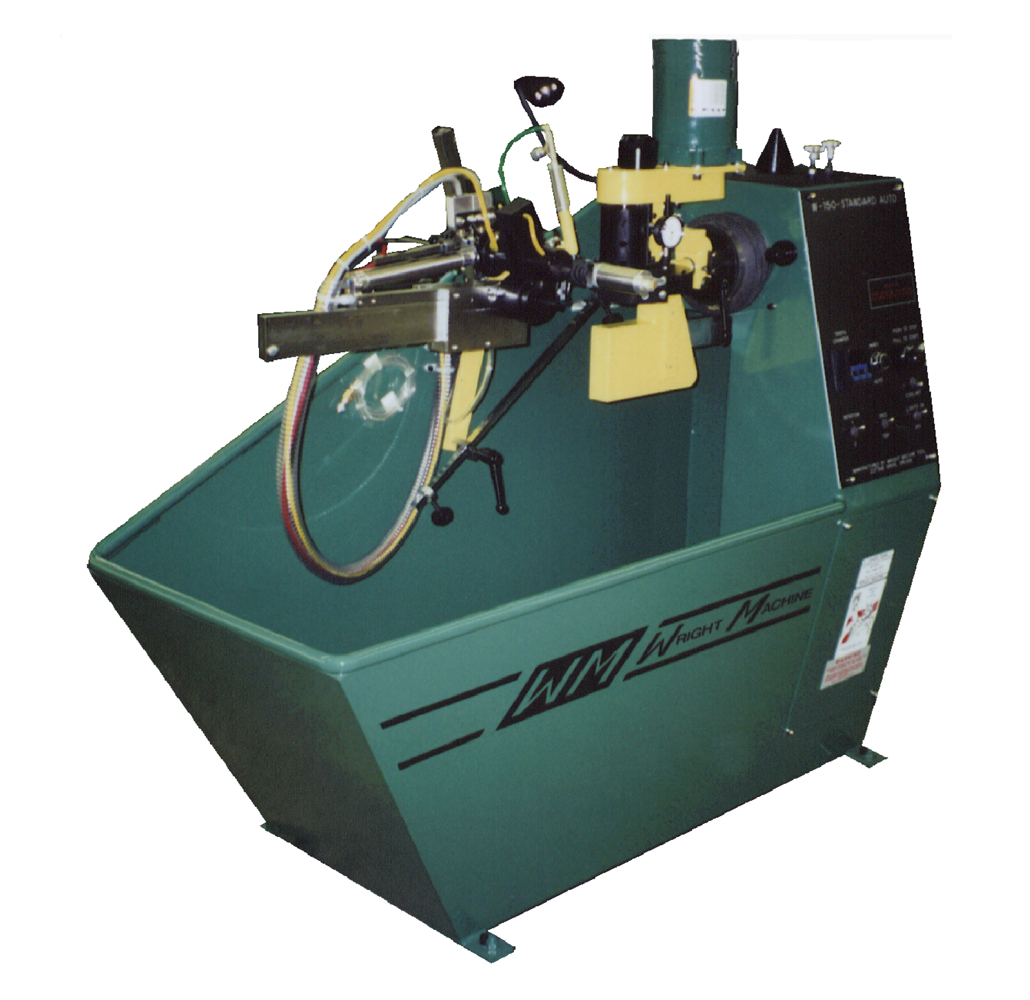

The fully automatic W-150 Standard Saw Sharpener reduces labor and grinding wheel consumption while improving saw accuracy and sharpness. The flexibility of manual operation for single tip repair combined with automatic function when full sharpening is required improves productivity and quality while reducing labor and total cost of sharpening.

The W-150 Standard Automatic Saw Sharpener offers many advantages. The air powered saw clamp holds the saw precisely while the hydraulic controlled feed gives a smooth consistent grind rate thus improving saw accuracy, sharpness, and finish while at the same time reducing grinding wheel costs. The compact design uses minimal floor space but allows sharpening of saws as large as 36" diameter. The W- 150 Standard Automatic provides reduced labor and increased quality for a very affordable capital cost.

W-150-STD Brochure

W-150-STD Manual


  • Filtered Full Flood Coolant
  • Poly Rib Belt Drive
  • Low Voltage Work Light
  • 3/4 hp Spindle Motor
  • Precision Spindle
  • Air Powered Saw Clamp
  • Tooth Counter With Auto- Stop
  • Hydraulic Controlled Feed
  • Coolant Filter
  • Precision Bevel Angle
  • Dial Indicated Infeed


  • Circle Saw Size: 6" to 36"
  • Power Consumption: 1.5 kW
  • Air: 2 CFM @ 80 psi
  • Voltage Std.: 230V, 1-phase, 50Hz/60Hz
  • Ship Weight: 900 lbs.
  • Crate Size: 73" x  43" x 57"
  • Max. Pitch: 6"
