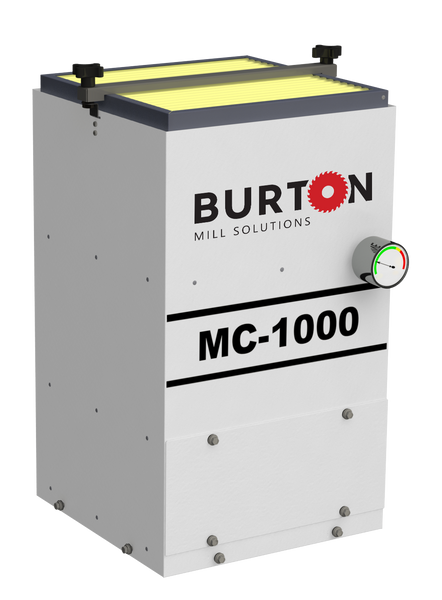

MC-1000 Mist Collector

Product Description

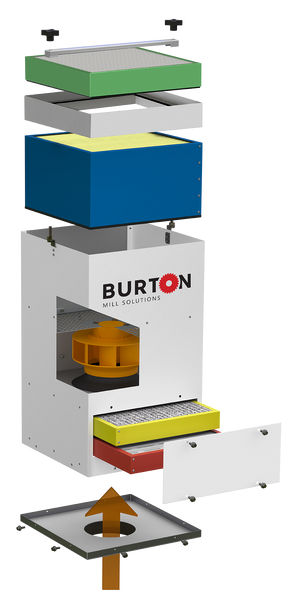

The MC-1000 mist collector is a compact unit with superior performance. It uses fibre bed filtration that is ideal for high pressure coolant and oil applications. Collected liquids drain back into the machine. The 1st stage Mechanical Element separates 90% of mist and swarf. The 2nd stage Demister Element supporst the 1st stage with a washable filter. The 3rd stage Fibre Bed mist filter captures small mist particles, rated MERV 15. The 4th sage HEPA filter captures submicron mist, smoke, and bacteria. The HEPA filter uses exclusive heavy duty filter media for the most hold and longest lasting filter on the market.

Features

  • Eliminates mist, smoke, and fine particles
  • Small footprint, 15" x 15"
  • Multi-Stage progressive filtration
  • High efficiency fibre bed filter
  • Push button motor starter
  • Modular design, add options as needed
  • Direct mount for a clean look
  • Optional top mount (and others)

Benefits

  • Long filter life
  • Low operating costs
  • Low maintenance
  • Clean air

Specifications

 Air flow 500-600 cfm
Filter Stages Mechanical element, demister element, fibre bed mist filter, HEPA filter
Motor 0.75 hp, push button start
Base plate 6" Ø inlet
Dimensions 15" L x 15" W x 30 " H
Weight 75 lbs
